Reefer loading: how many pallets and cartons?
The answers below are calculated with the LULL & STORM Stuffing Desk. A refrigerated unit is smaller inside than its dry equivalent, because of the insulation and the refrigeration unit. For pallets, the tool allows 2 cm of clearance per pallet.
Indicative figures based on typical dimensions. Always confirm with your carrier before loading.
| Question | Answer | 3D |
|---|---|---|
| How many pallets fit in a 20ft reefer container? | 10 EUR pallets | Open in 3D → |
| How many frozen cartons fit in a 40' reefer? | 1 | Open in 3D → |
| How many pallets fit in a reefer semi-trailer? | 32 EUR pallets | Open in 3D → |

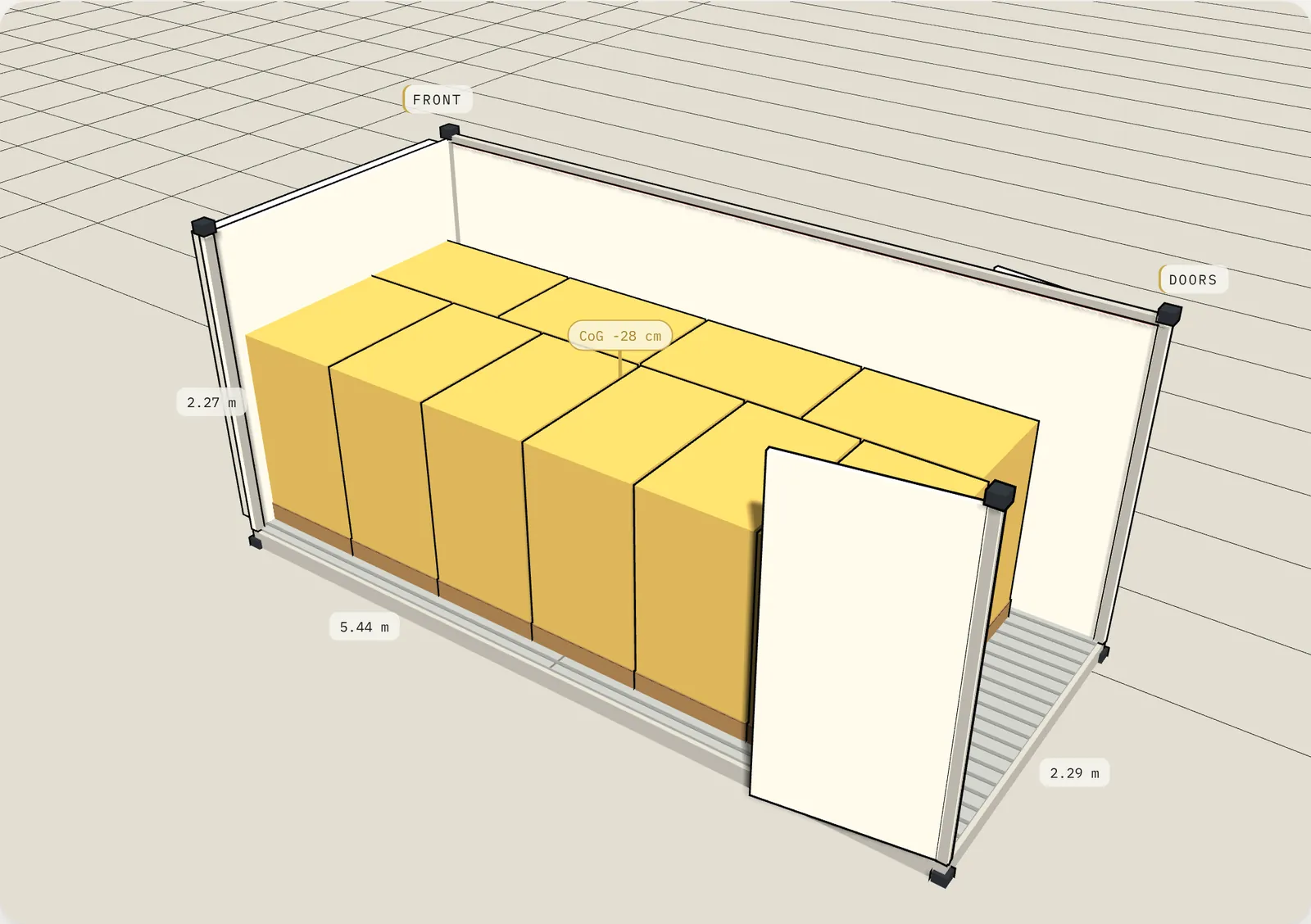

How many pallets fit in a 20ft reefer container?
10 EUR pallets.
A 20' reefer measures about 5.44 × 2.29 m inside, against 5.90 × 2.35 m for a 20' dry: one pallet less. Do not load above the red load line, and leave air free to circulate under and above the cargo.
20' reefer · inside 544 × 229 × 227 cm · payload 27.5 tOpen the plan in interactive 3D →
How many frozen cartons fit in a 40' reefer?
1,640 cartons of 18 kg (50 × 30 × 25 cm), or 29.5 t: the payload is reached.
With dense cargo such as frozen goods, weight is the limit before volume. The 40' high cube reefer offers about 11.58 × 2.29 × 2.55 m and a typical payload of 29.5 t, which varies with the manufacturer and the refrigeration unit.
40' reefer HC · inside 1158 × 229 × 255 cm · payload 29.5 tOpen the plan in interactive 3D →

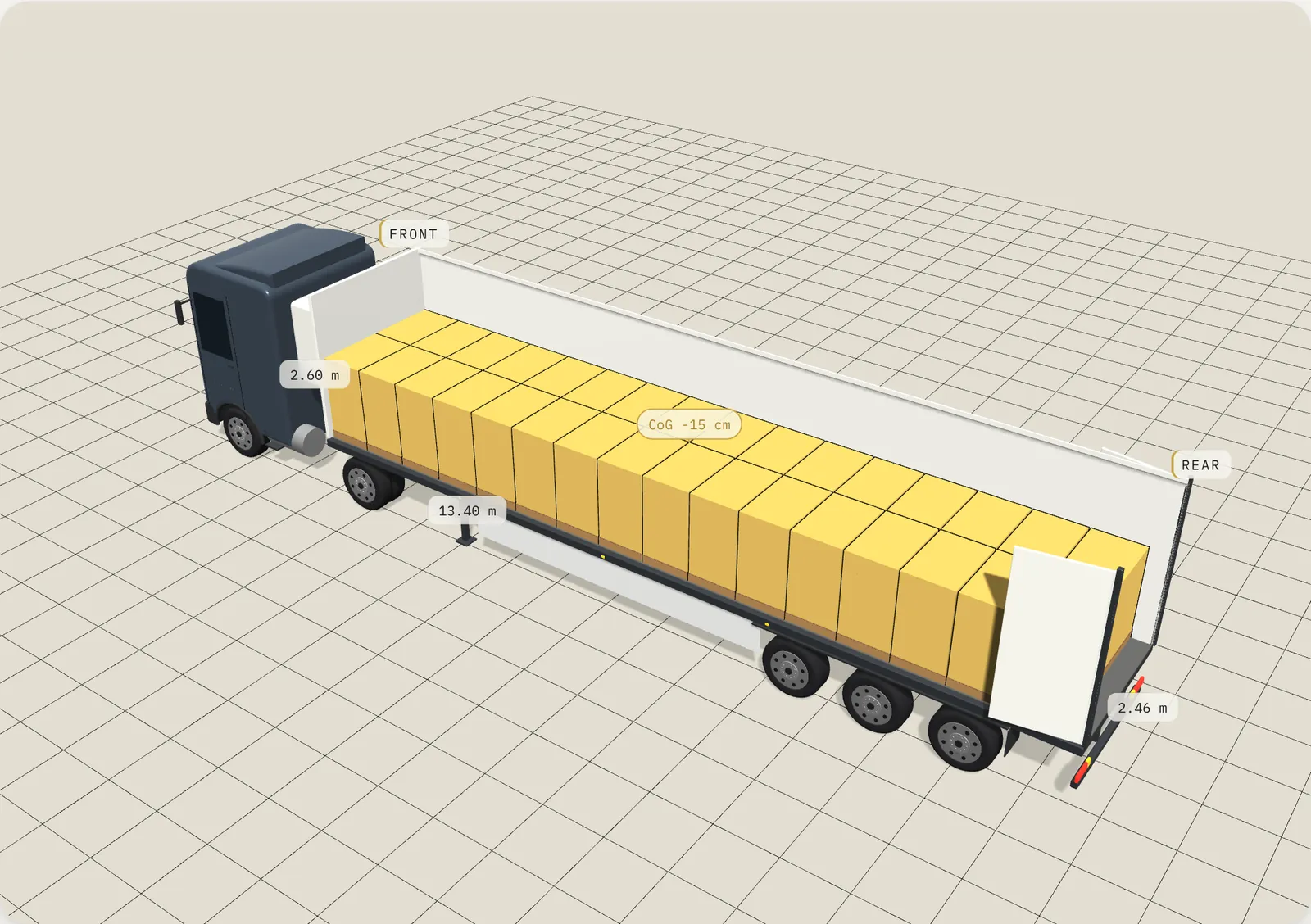

How many pallets fit in a reefer semi-trailer?
32 EUR pallets, 33 as a theoretical maximum.
The insulated walls bring the body down to about 13.40 × 2.46 m. With 2 cm of clearance per pallet, 32 pallets fit; with none, 33. Leave space in front of the refrigeration unit for air circulation.
Reefer semi-trailer · 1340 × 246 × 260 cm · payload 22 tOpen the plan in interactive 3D →
Different dimensions? Import your packing list and get your own 3D load plan, free.
Open the Stuffing Desk →Indicative figures based on typical dimensions. Always confirm with your carrier before loading. Typical inside dimensions and payloads: they vary with the manufacturer, the body builder and the options. Check the CSC plate of the container or the registration document of the vehicle. Unit counts are geometric maximums for identical units; secure the load according to the CTU Code and EN 12195-1.
